HDD
Adhunik

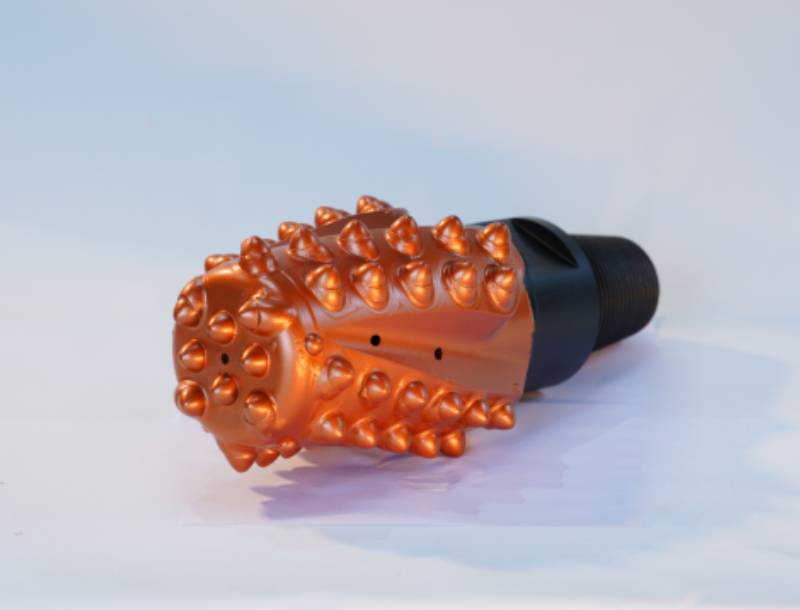

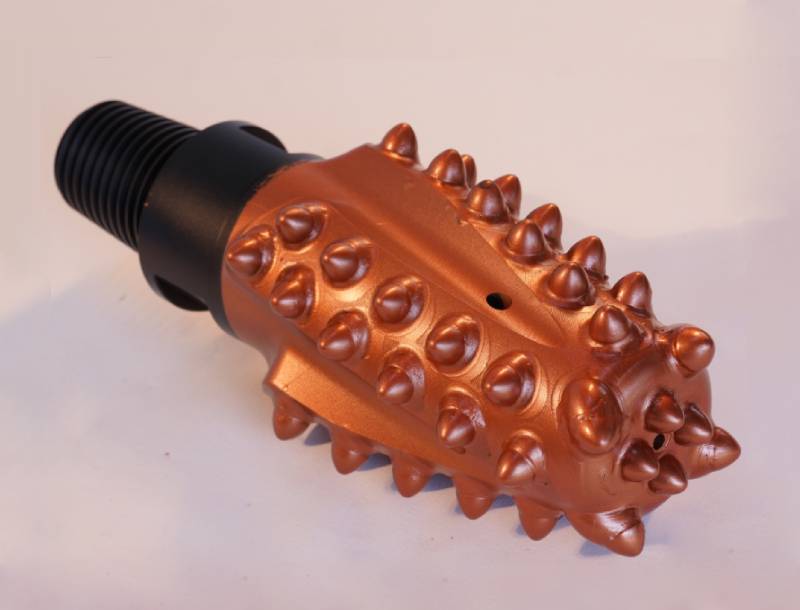

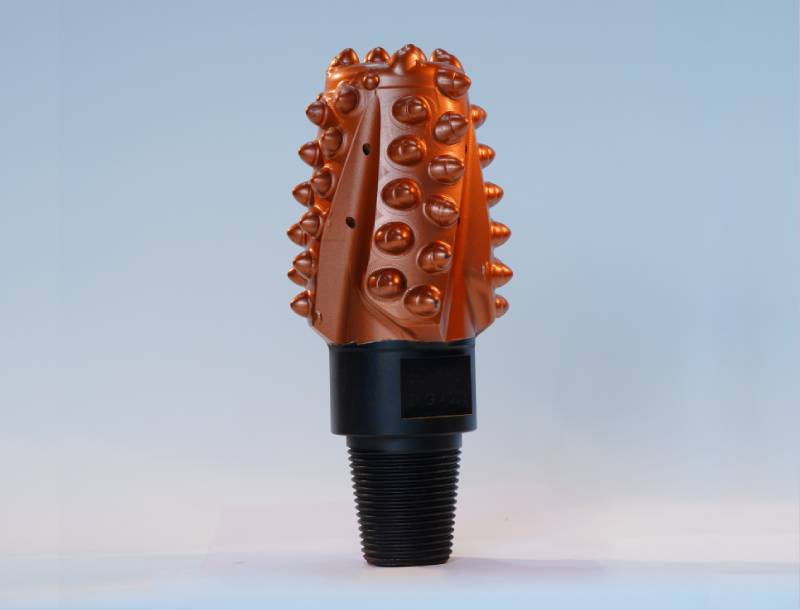

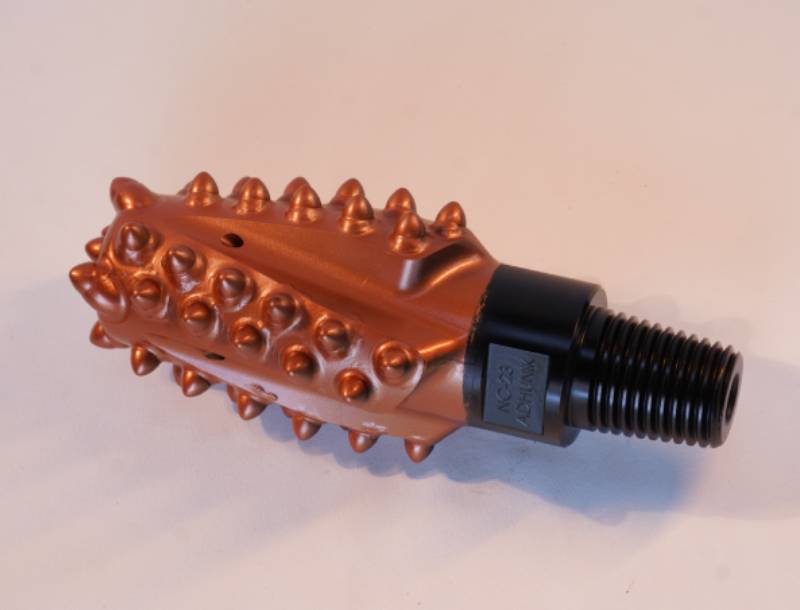

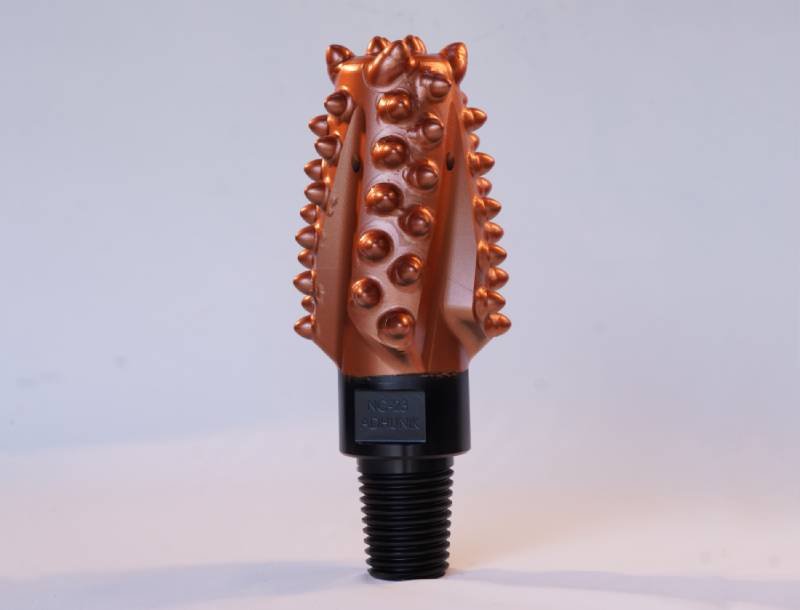

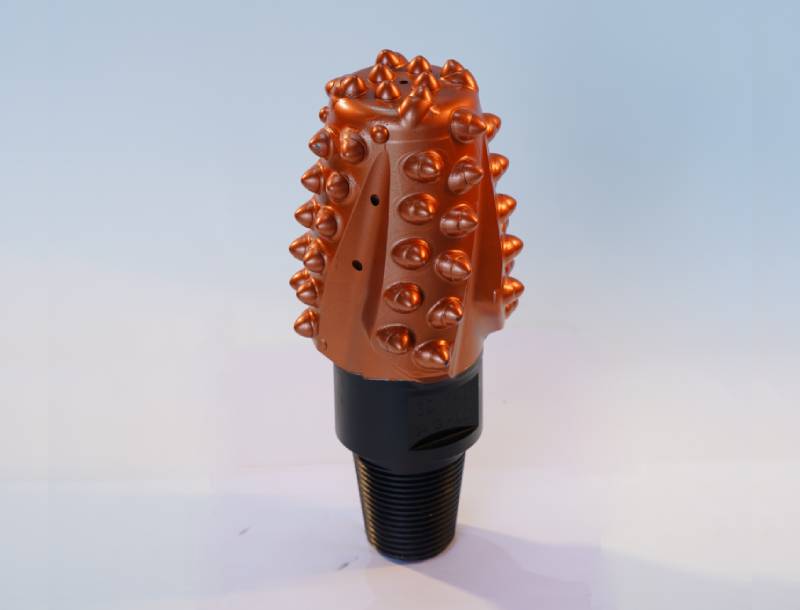

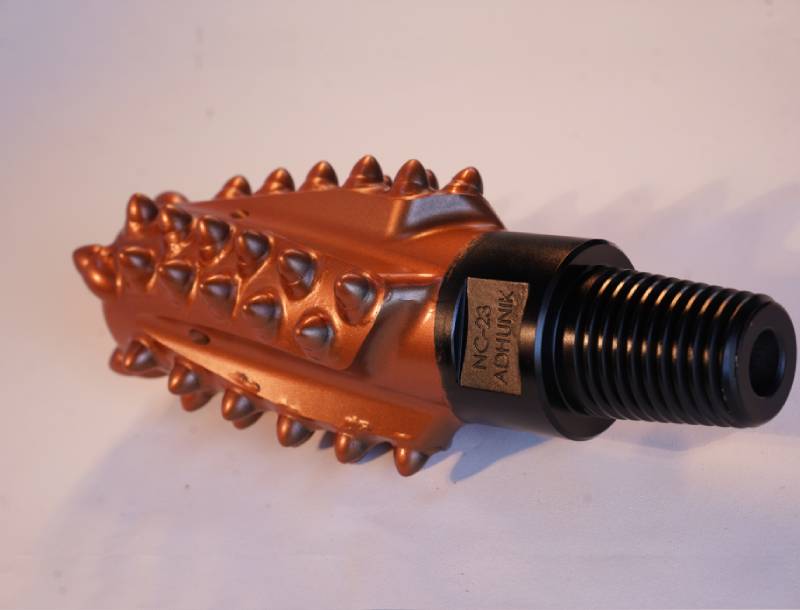

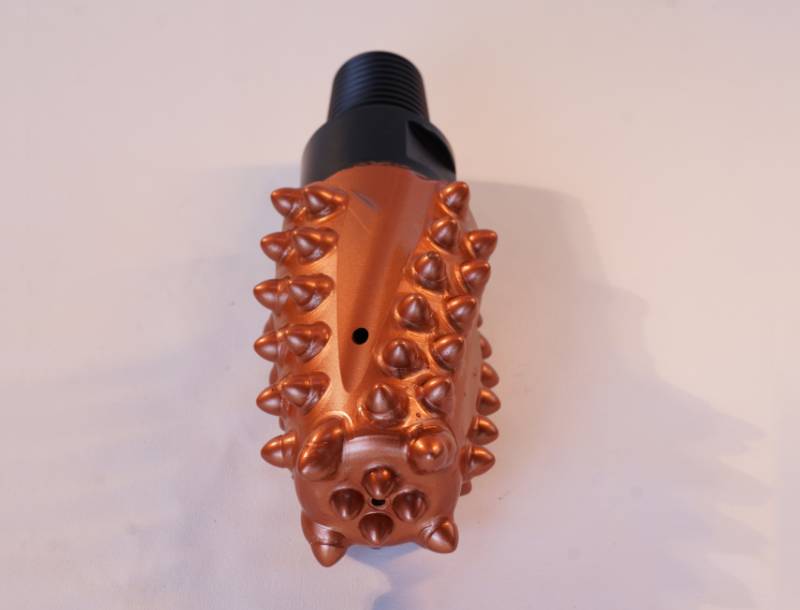

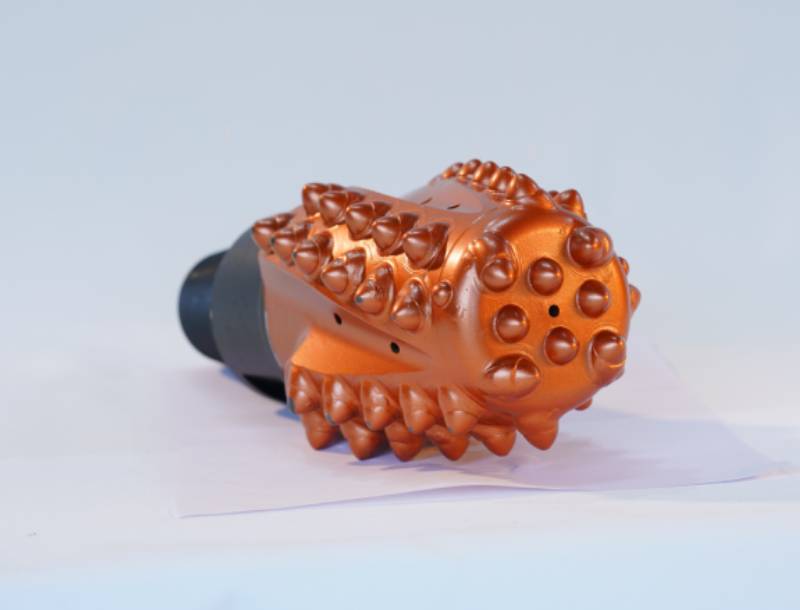

Is our new innovative drill tools made to drill soft to medium hard rock, the unique shape and cutting structure layout of this rock tool allows to drill and steer through challenging formations.
This tool is carved out of one-piece heat-treated alloy steel, fortified with high grade carbide inserts to drill thru soft to medium hard rock.
This tool is designed to replace the traditional tri cone bits, as there are no bearings, moving & rotating parts thus so no fear of losing cones down hole. This Adhunik rock tool can be run on mud motors & Ditch-witch all terrain RockMaster tools.
| Part No. (Name_Drill_Diameter_Thread) |
Drill Diameter | Thread Connection | Mud Ports | |
|---|---|---|---|---|
| In MM | In Inches | |||
| ADHUNIK_140_NC23 | 140 | 5.5" | NC23 | 5 X 6 mm |
| ADHUNIK_140_2-3/8" REG PIN | 140 | 5.5" | 2-3/8" REG PIN | 5 X 6 mm |
| ADHUNIK_140_2-7/8" REG PIN | 140 | 5.5" | 2-7/8" REG PIN | 5 X 6 mm |
| ADHUNIK_165_NC31 | 165 | 6.5" | NC31 (2-7/8" IF PIN) | 8 X 6 mm |
| ADHUNIK_165_3-1/2 REG PIN | 165 | 6.5" | 3-1/2" REG PIN | 8 X 6 mm |
