Our “YALI” side load housings has Box to Box connection, improves flexibility to choose the tooling based on soil condition. These housings are built from 4145 Heat treated alloy steel, outer body is protected with state-of-the-art robotic laser cladding to enhance the wear protection.

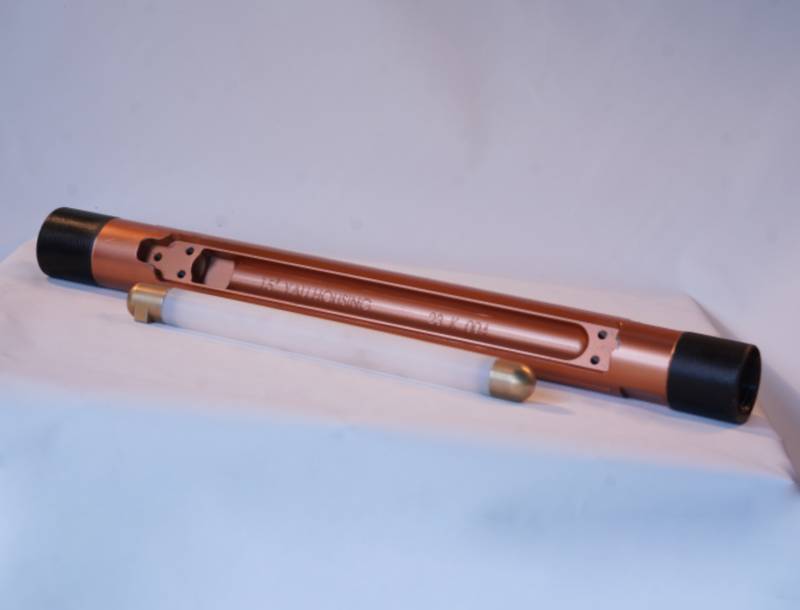

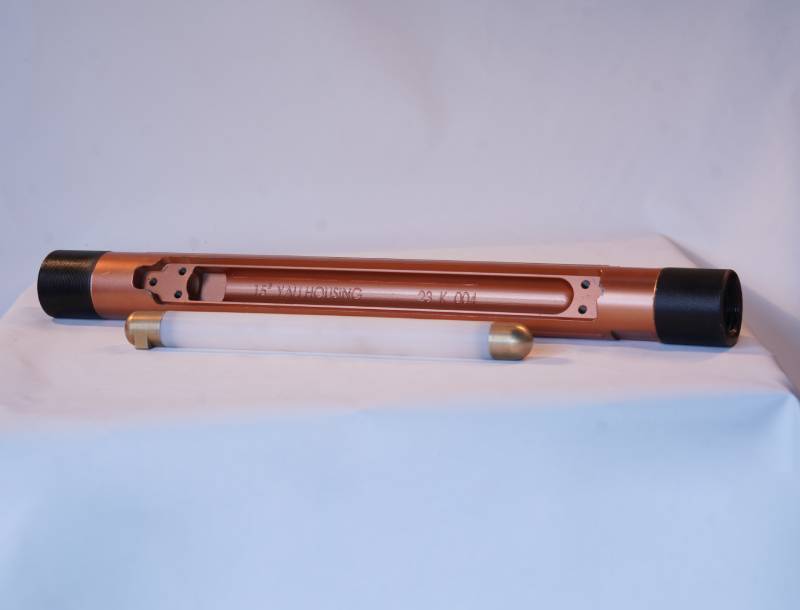

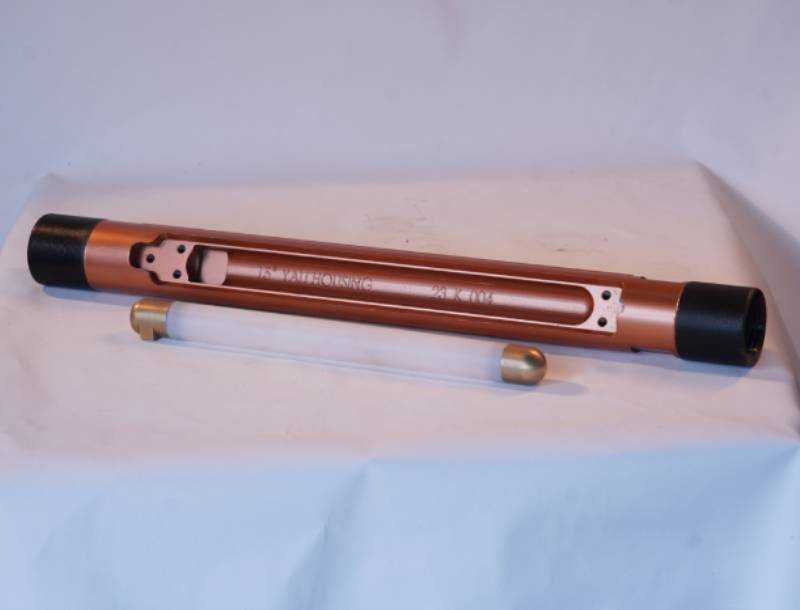

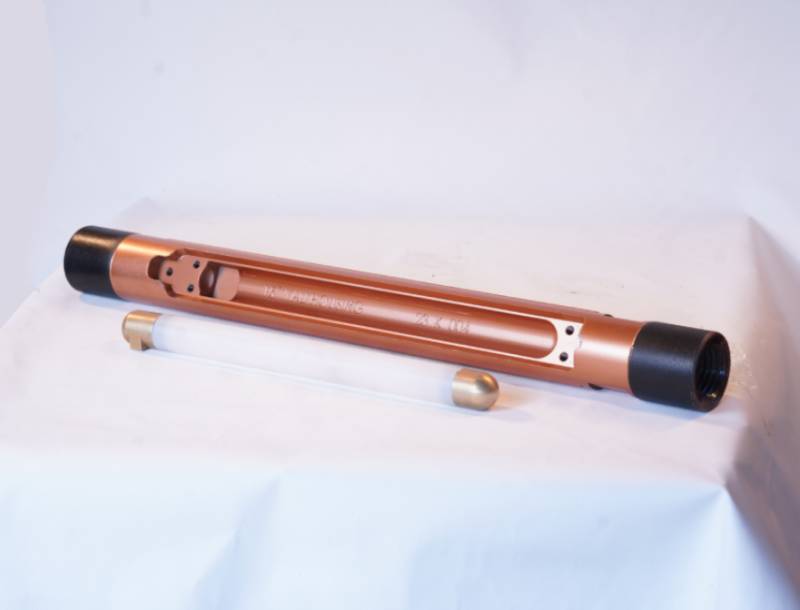

In “YALI” Housings the sonde is secured inside the nylon tube with the help of adaptors provide extra cushion / protection to sonde and extends its life in hard drilling conditions. These housings are compatible with Underground Magnetics & DigiTrak 15” & 19” transmitters.

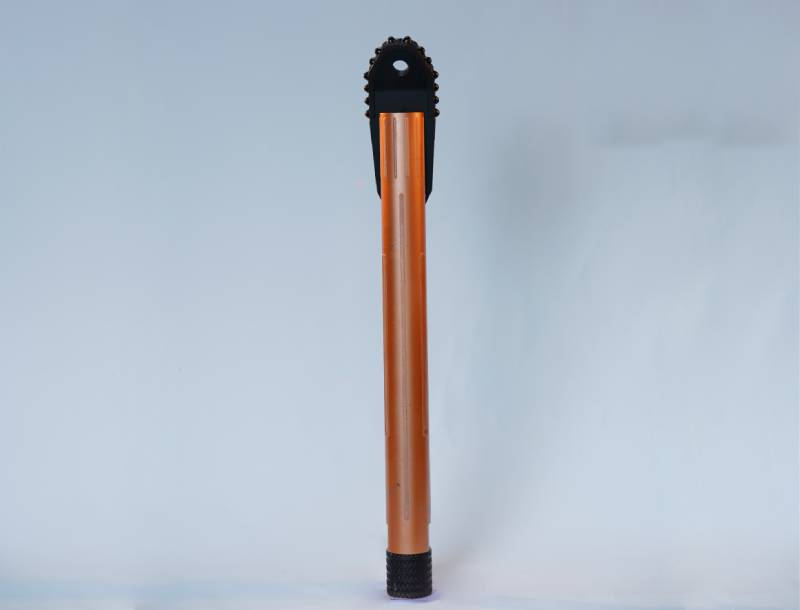

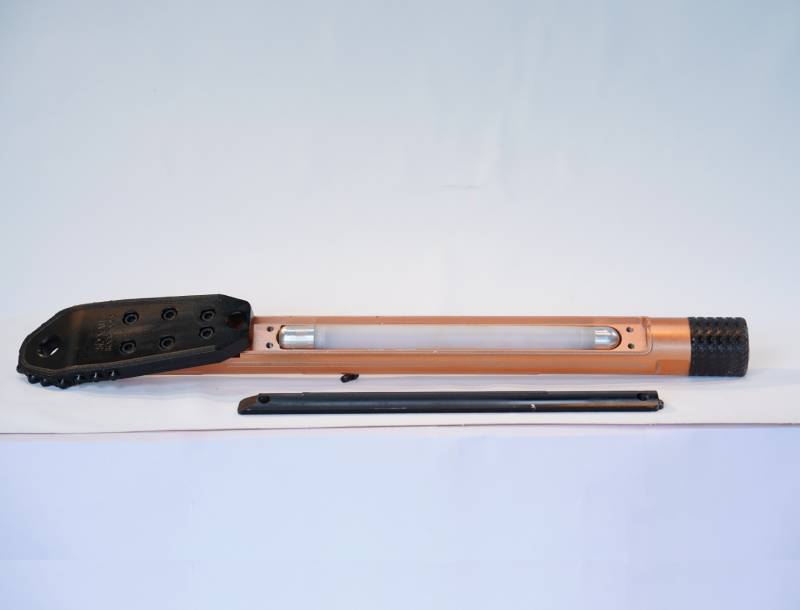

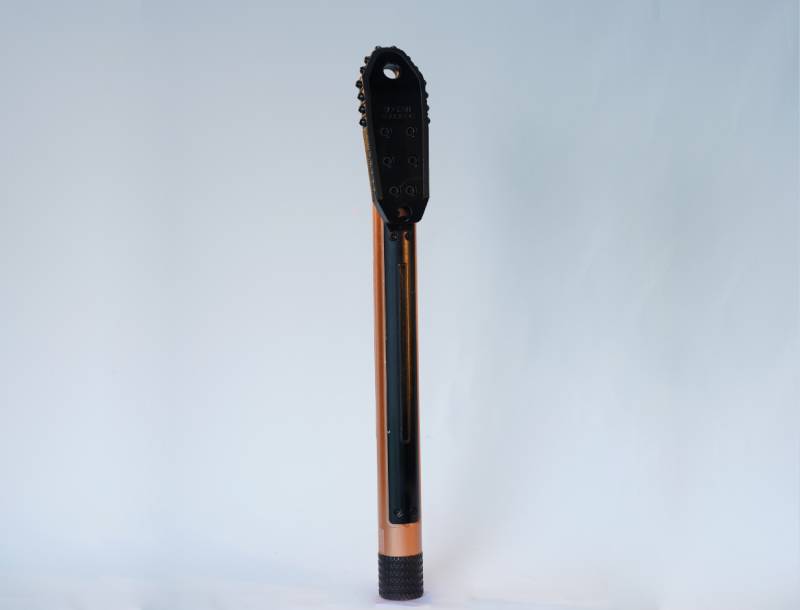

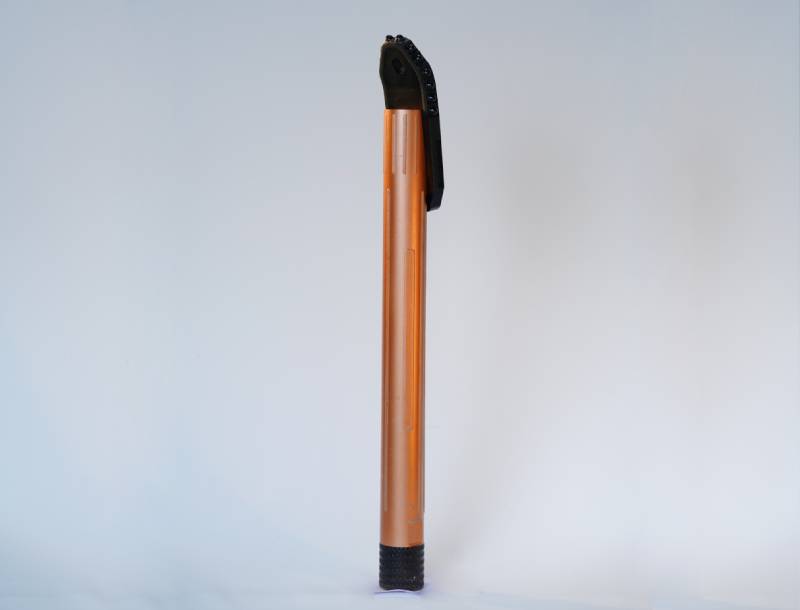

THD76S
THD76S
THD76S
THD76S
THD76S
THD76S
HDD

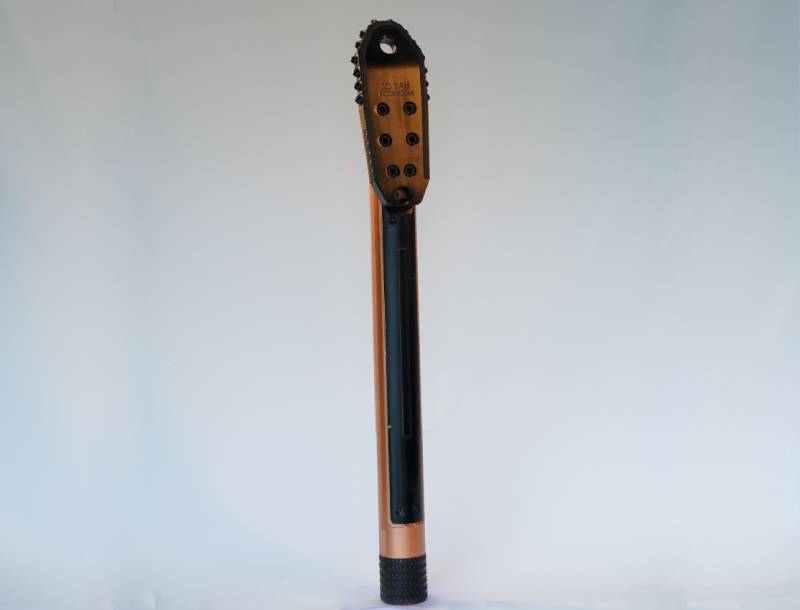

THD76S
- Outer diameter 76mm ( 3”)
- Side lid with 5 point bolt locking system
- Accommodate 15” Transmitter
- Compatible with Vermeer and Ditch Witch 5 & 6 bolt locking pilot bits
- Outer body protected with laser hardfacing to enhance the life of housing
* For any customized threads please contact us
| Part No. | Diameter | Bolt Pattern | Connection | Transmitter |
|---|---|---|---|---|
| THD76S - 2" IF BOX | 76 mm / 3" | 6 BOLT (1/2") | 2" IF BOX | 15" |
| THD76S - FS600 | 76 mm / 3" | 6 BOLT (1/2") | FS600 | 15" |
HDD

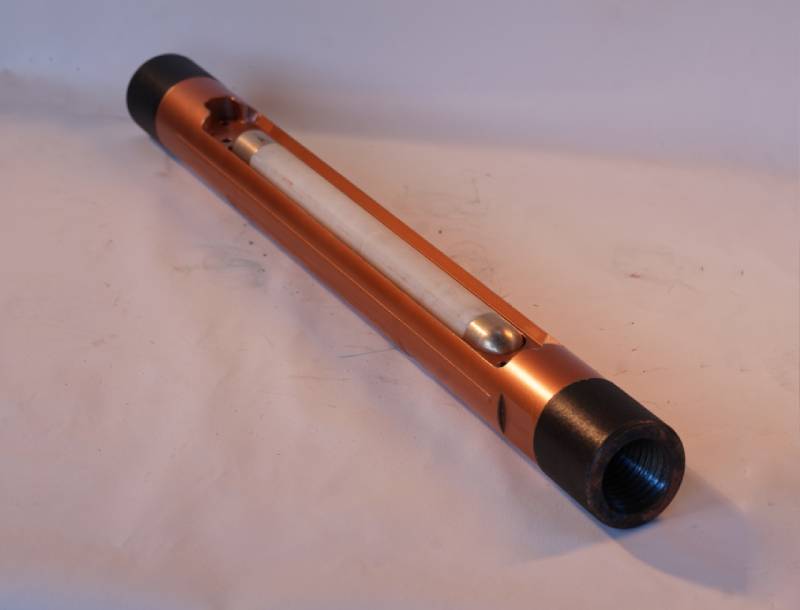

THD76B
- Outer diameter 76mm ( 3”)
- Side lid with 5 point bolt locking system
- Accommodate 15” Transmitter
- Box to Box thread connection gives flexibility to choose the drilling tools based on the soil conditions
- Outer body protected with laser hardfacing to enhance the life of housing
* For any customized threads please contact us
THD76B
THD76B
THD76B
THD76B
THD76B
| Part No. | Diameter | Description | Connection | Transmitter |
|---|---|---|---|---|
| THD76B - 2" IF BOX | 76 mm / 3" | 2" IF BOX - BOX | 2" IF BOX | 15" |
| THD76B - FS600 BOX | 76 mm / 3" | FS600 BOX - BOX | FS600 BOX | 15" |

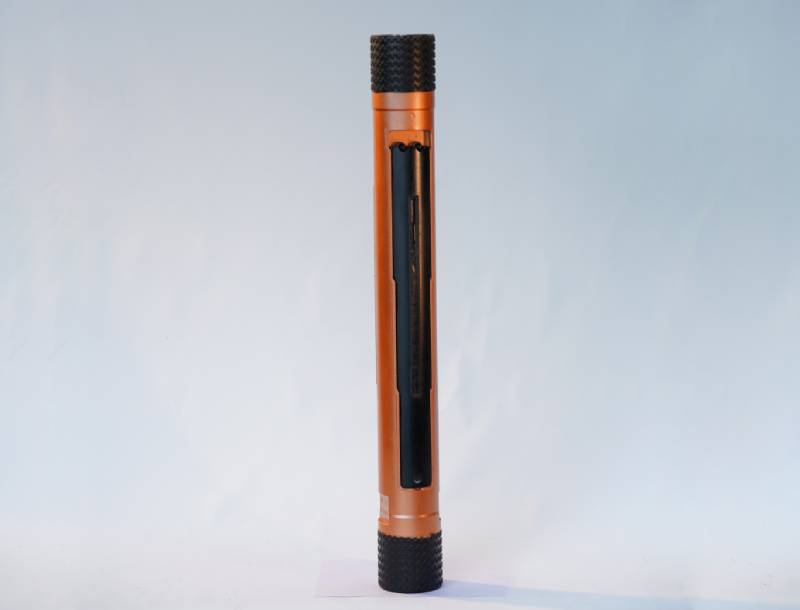

THD85B
THD85B
THD85B
THD85B
THD85B
HDD

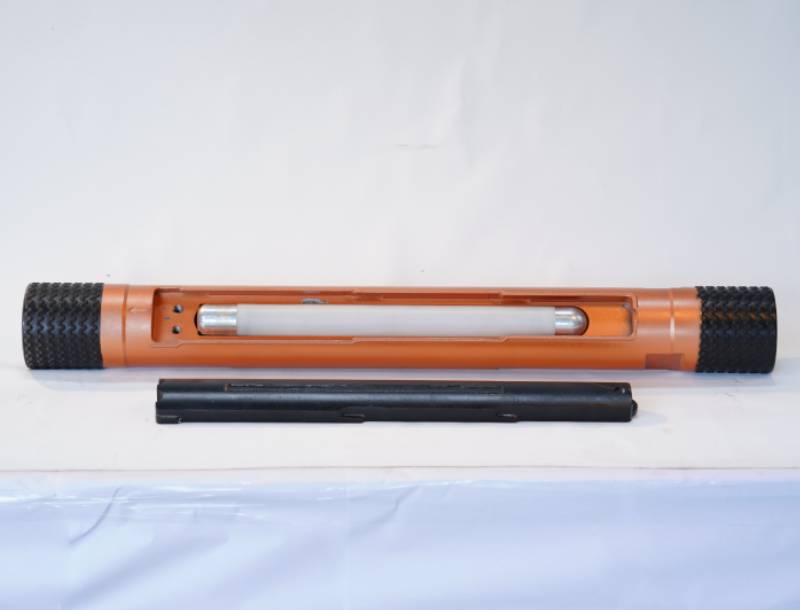

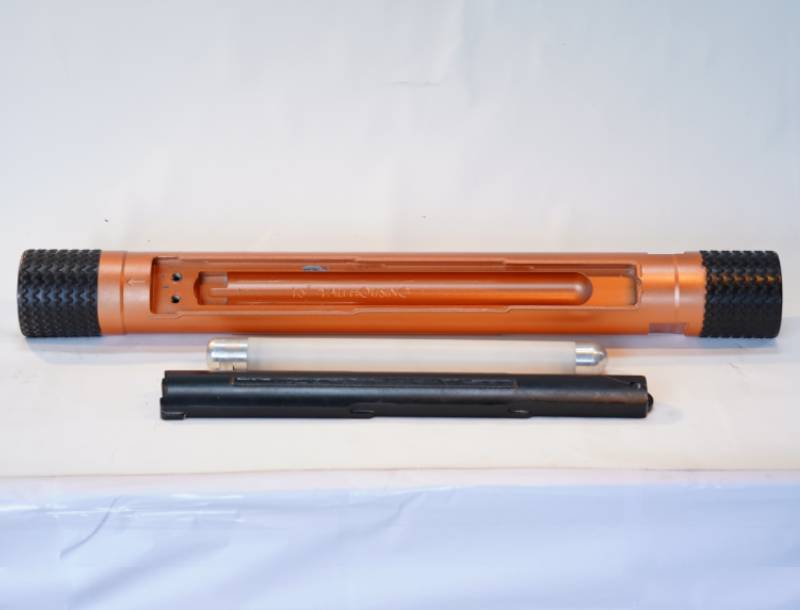

THD85B
- Outer diameter 85mm ( 3.35”)
- Unique sliding lid design that locks with housing at 4 points.
- Option to choose from 15” or 19” Transmitter
- Box to Box thread connection gives flexibility to choose the drilling tools based on the soil conditions.
- Outer body protected with laser hardfacing to enhance the life of housing
* For any customized threads please contact us
| Part No. | Diameter | Connection | Transmitter |
|---|---|---|---|
| THD85B - 2-3/8" API BOX | 85 mm / 3.35" | 2-3/8" API BOX - BOX | 15" / 19" |
| THD85B - NC23 ΒΟΧ | 85 mm / 3.35" | NC23 BOX - BOX | 15" / 19" |
| THD85B - FS700 BOX | 85 mm / 3.35" | FS700 BOX - BOX | 15" / 19" |
HDD

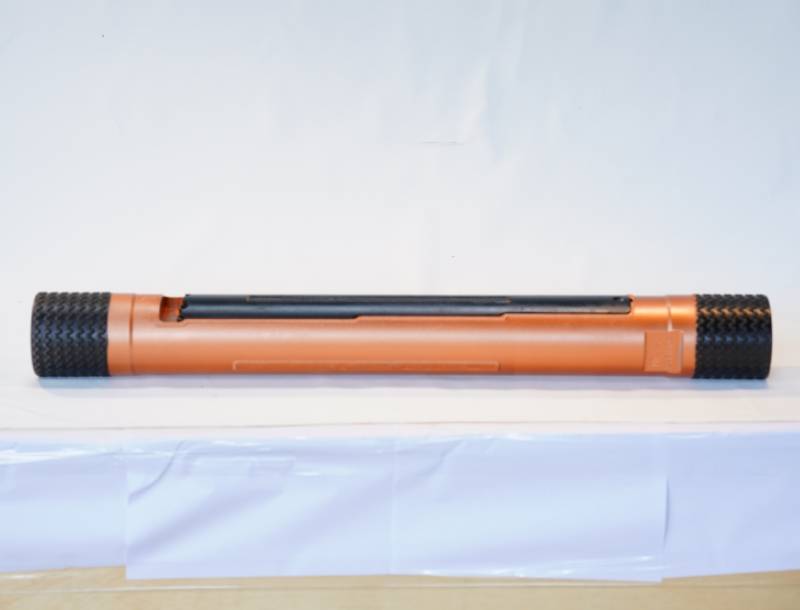

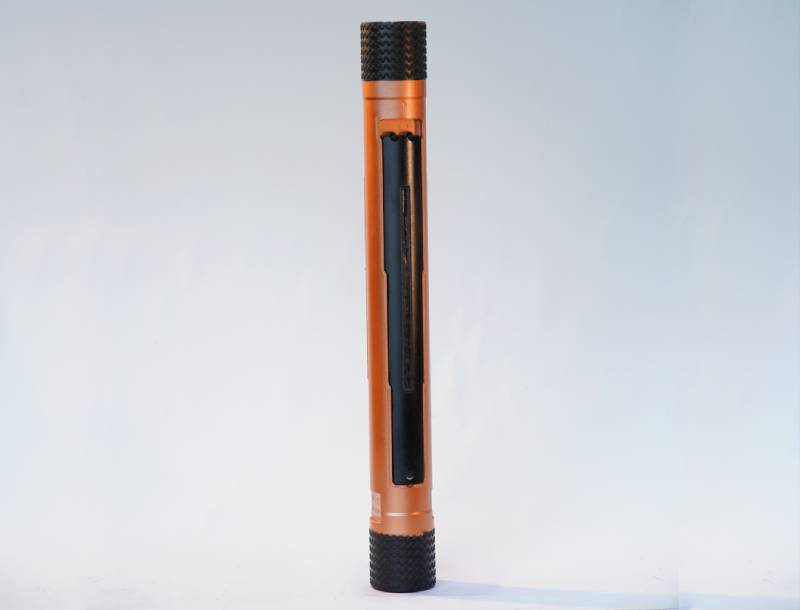

THD95B
- Outer diameter 95mm ( 3.75”)
- Unique sliding lid design that locks with housing at 4 points.
- Option to choose from 15” or 19” Transmitter
- High capacity flow (200 Lts/min) thru the housing for better transmitter cooling & enhanced drill bit cutting structure cleaning.
- Box to Box thread connection gives flexibility to choose the drilling tools based on the soil conditions.
- Outer body protected with laser hardfacing to enhance the life of housing.
* For any customized threads please contact us
THD95B
THD95B
THD95B
| Part No. | Diameter | Connection | Transmitter |
|---|---|---|---|
| THD95B - 2-7/8" API BOX | 95 mm / 3.75" | 2-7/8" API BOX - BOX | 15" / 19" |
| THD95B - NC23 ΒΟΧ | 95 mm / 3.75" | NC23 BOX - BOX | 15" / 19" |
| THD95B - FS800 BOX | 95 mm / 3.75" | FS800 BOX - BOX | 15" / 19" |
| THD95B - FS900 BOX | 95 mm / 3.75" | FS900 BOX - BOX | 15" / 19" |
